Fistula Needle--Guangdong Baihe Medical Technology Co., Ltd.

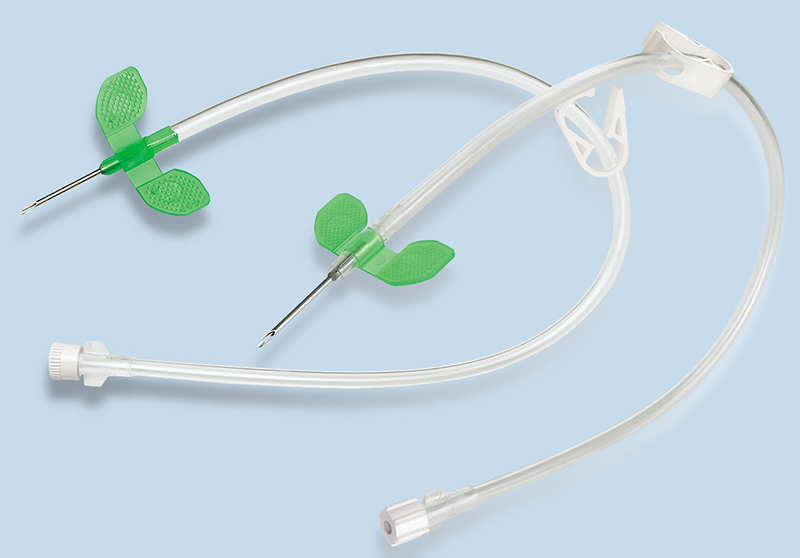

Fistula Needle

The Internal Fistula Needle is used in the process of hemodialysis. The material of this product is medical-grade PVC. Tubes of this product are soft and transparent, and it is convenient and credible to connect with other medical devices.

Intended Use
Features
Order Information

The product is intended to puncture the mature fistula, and connect with the blood lines to establish blood circulating path outside human body in the process of hemodialysis.

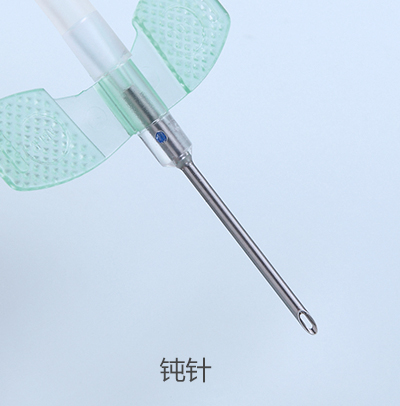

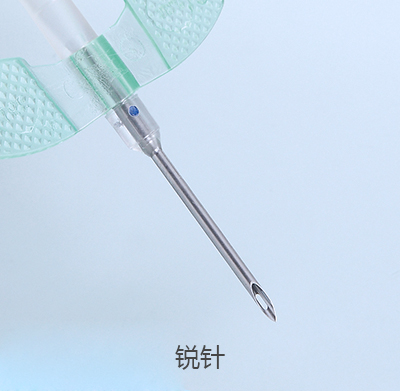

A.V.Fistula Needle：

1. Fine polishing process on blade to puncture easily and smoothly.

2. Siliconised needle reduces pain and blood coagulation.

3. Back eye and ultra thin-walled ensures a high blood flow rate.

4. Rotatable wing and fixed wing are available.

Safety Fistula Needle：

1. The needle will be isolated completely from outside, which can protect medical workers and medical waste cleaners from getting injured and avoid blood-transmitted diseases.

2. Simple structure, easy operation, good market acceptance, can replace sharps containers.

CODE(Single pack)	CODE(Twin pack)	Diameter	Wing	Needle length(mm)	Tube length(mm)
FN-1512S	FN-1512D	15G	Fixed	25mm±2.0mm	300mm±2.0mm
FN-1612S	FN-1612D	16G	Fixed	25mm±2.0mm	300mm±2.0mm
FN-1712S	FN-1712D	17G	Fixed	25mm±2.0mm	300mm±2.0mm
FN-1522S	FN-1522D	15G	Fixed	32mm±2.0mm	300mm±2.0mm
FN-1622S	FN-1622D	16G	Fixed	32mm±2.0mm	300mm±2.0mm
FN-1722S	FN-1722D	17G	Rotatable	32mm±2.0mm	300mm±2.0mm
FN-1512ZS	FN-1512ZD	15G	Rotatable	25mm±2.0mm	300mm±2.0mm
FN-1612ZS	FN-1612ZD	16G	Rotatable	25mm±2.0mm	300mm±2.0mm
FN-1712ZS	FN-1712ZD	17G	Rotatable	25mm±2.0mm	300mm±2.0mm
FN-1522ZS	FN-1522ZD	15G	Rotatable	32mm±2.0mm	300mm±2.0mm
FN-1622ZS	FN-1622ZD	16G	Rotatable	32mm±2.0mm	300mm±2.0mm
FN-1722ZS	FN-1722ZD	17G	Rotatable	32mm±2.0mm	300mm±2.0mm
